97-3106A-20-24P

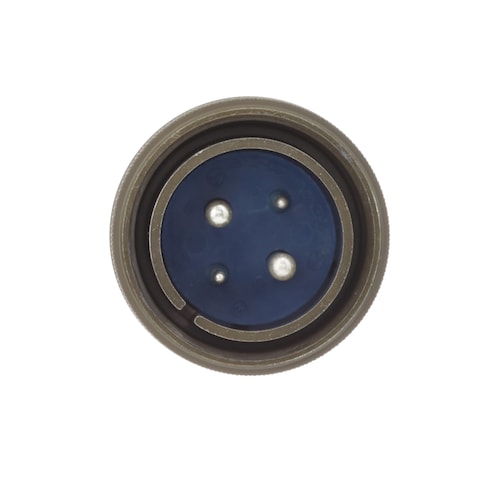

Name: Amphenol 97-3106A-20-24P
Brand: Amphenol Industrial
SKU: 654-97-3106A-20-24P
Price: 2178588 IDR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-97-3106A-20-24P

Mfr. No:

97-3106A-20-24P

Mfr.:

Amphenol Industrial

Description:

Circular MIL Spec Connector 4P Straight Pin Plug Sz 20 Solder

Datasheet:

97-3106A-20-24P Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol Industrial 97-3106A-20-24P

In Stock: 15

Stock:: 15 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

Rp-

Ext. Price:

Rp-

Est. Tariff:

Pricing (IDR)

Qty.	Unit Price	Ext. Price
	Rp2.178.588	Rp2.178.588
	Rp1.885.969	Rp47.149.225
	Rp1.812.034	Rp90.601.700
	Rp1.707.646	Rp170.764.600
250	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Circular MIL Spec Connector
RoHS:	N
Number of Positions:	4 Position
Contact Gender:	Pin (Male)
Insert Arrangement:	20-24
Product:	Connectors
Shell Size:	20
Shell Style:	Straight
MIL Type:	MIL-DTL-5015
Termination Style:	Solder
Mounting Style:	Cable
Current Rating:	13 A
Contact Plating:	Silver
Contact Material:	Copper Alloy
Series:	97 5015
Brand:	Amphenol Industrial
Mating Style:	Threaded
Mounting Angle:	Straight
Product Type:	Circular MIL Spec Connector
Shell Material:	Aluminum Alloy
Shell Plating:	Cadmium
Factory Pack Quantity:	1
Subcategory:	Circular Connectors
Tradename:	5015
Part # Aliases:	10-820071-24P U10-820071-24P
Unit Weight:	62 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

97-3106A-20-24P Datasheet (PDF)

Specification Sheets

Technical Resources

Straight vs Diamond Backshell 97 series (PDF)

This functionality requires JavaScript to be enabled.

CNHTS:: 8538900000
CAHTS:: 8536690030
USHTS:: 8536694020
JPHTS:: 853669000
KRHTS:: 8536699000
TARIC:: 8536699099
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

5015 Series Connectors

Amphenol Industrial 5015 Series Connectors are rugged and versatile. These environmentally resistant connectors offer proven electrical capability for a cost-effective solution. The medium to heavyweight cylindrical 5015 connectors are available in a range of shell styles, shell sizes, and service classes. They are designed to MIL-DTL-5015 (SAE-AS 50151) standards. Amphenol Industrial 5015 Connectors offer more than 300 insert patterns and are available with solder or crimp contacts as well as RADSOK^® contacts in certain sub-series.

Amphenol MIL-Circular Connectors

Amphenol Industrial's extensive line of MIL-circular connectors come in many different sizes and configurations. Mouser offers this comprehensive line of circular connectors fully assembled and in-stock. Having our stock fully assembled enables your connectors to ship same-day, so you can have the right connector right now.

97 Series Cylindrical Connectors

Amphenol Industrial General Duty Standard 97 Series Cylindrical Connectors provide a cost-effective solution utilizing the proven MIL-C-5015 style. These connectors are versatile and offer a large selection of insert patterns. The 97 series features a threaded coupling, hard dielectric inserts, six shell options with 128 different contact arrangements, and 1 to 52 circuits. The connectors are fabricated from high-grade aluminum alloy and are UL and CSA recognized. RoHS versions are available with 946 suffixes. Amphenol Industrial General Duty Standard 97 Series Cylindrical Connectors are widely used for the automotive, robotics, machine tool, and welding industries, as well as in other commercial applications.
