UTXFM4R

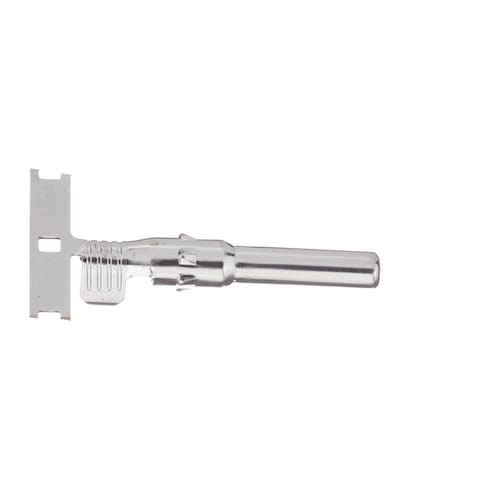

Name: Amphenol UTXFM4R
Brand: Amphenol Industrial
SKU: 654-UTXFM4R
Price: 6971 IDR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

654-UTXFM4R

Mfr. No:

UTXFM4R

Mfr.:

Amphenol Industrial

Description:

Solar Connectors / Photovoltaic Connectors Pin Contact Solar 10-12 AWG Tin - reel of 2000 pieces

Datasheet:

UTXFM4R Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol Industrial UTXFM4R

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 8 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

Rp-

Ext. Price:

Rp-

Est. Tariff:

Pricing (IDR)

Qty.	Unit Price	Ext. Price
	Rp6.971	Rp6.971
	Rp5.871	Rp58.710
	Rp5.174	Rp129.350
	Rp4.788	Rp478.800
	Rp4.293	Rp1.073.250
	Rp3.706	Rp3.706.000
Full Reel (Order in multiples of 2000)
	Rp3.431	Rp6.862.000
	Rp3.174	Rp31.740.000
	Rp3.064	Rp61.280.000

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Solar Connectors / Photovoltaic Connectors
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Amphenol Industrial
Product Type:	Solar Connectors / Photovoltaic Connectors
Factory Pack Quantity:	2000
Subcategory:	Solar Connectors / Photovoltaic Connectors
Tradename:	RADSOK
Part # Aliases:	PV-692875-M02-R

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

UTXFM4R Datasheet (PDF)

CNHTS:: 8538900000
USHTS:: 8536904000
TARIC:: 8536699099
ECCN:: EAR99

H4 UTX PV Cable Connectors

Amphenol Industrial H4 UTX™ PV Cable Connectors are robust and triple-certified to UL 6703 1000V, EN50521 1500V (Class A), and JET 1500V specifications. These certifications mean these connectors are available for usage in all major global PV markets. The H4 UTX series features Amphenol's low-resistance RADSOK® contact technology and is available in all AWGs, from 14AWG to 8AWG. These connectors are fully mateable with all existing H4 PV connectors and the typical PV industry-standard connectors. They have an IP68 rating when mated. Amphenol Industrial H4 UTX PV Cable Connectors also feature a ratcheting gland back nut, which prevents backspin once the nut is tightened.

RADSOK® Connectors

Amphenol Industrial RADSOK® Connectors upgrade many core connectors by simply adding the RADSOK advantage. RADial SOcKet (RADSOK) is a socket cylinder within a female contact that has several equally spaced longitudinal beams twisted into a hyperbolic shape. As the male pin is inserted, axial members in the female half deflect, imparting high current flow across the connection with minimal voltage loss. The configuration ensures a large, coaxial, face-to-face surface area engagement and is ideal for crimp termination applications requiring repeated mating cycles and high current with a low millivolt drop. Amphenol connectors using RADSOK technology include Amphe-GTR Reverse Bayonet Connectors for Power Applications, PowerBus Amphe-PD™ Connectors, Amphe-Power® Connectors, board level connectors such as PowerBlok™, RADSERT™, and PGY™, SurLok Connectors, and Helios H4 Solar Connectors.
