ZA-12CFRS-BA0001

Name: Amphenol ZA-12CFRS-BA0001
Brand: Amphenol LTW
SKU: 523-ZA-12CFRS-BA0001
Price: 107508 IDR
Availability: OutOfStock

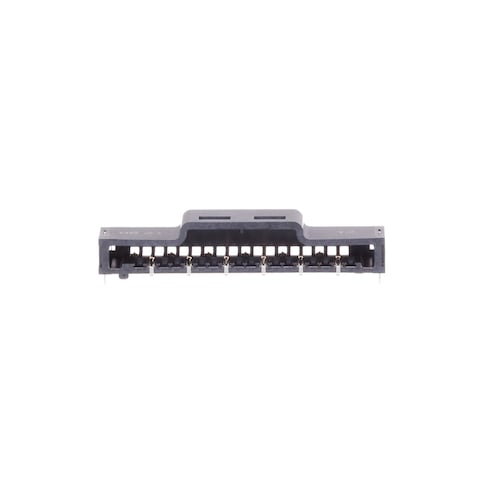

Images are for reference only
See Product Specifications

Mouser No:

523-ZA-12CFRS-BA0001

Mfr. No:

ZA-12CFRS-BA0001

Mfr.:

Amphenol LTW

Description:

FFC & FPC Connectors ZConnect RCPT 12P FEMALE

Datasheet:

ZA-12CFRS-BA0001 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol LTW ZA-12CFRS-BA0001

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 5 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 600 Multiples: 600

Unit Price:

Rp-

Ext. Price:

Rp-

Est. Tariff:

Pricing (IDR)

Qty.	Unit Price	Ext. Price
Full Reel (Order in multiples of 600)
	Rp107.508	Rp64.504.800
	Rp98.151	Rp117.781.200
2.400	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	FFC & FPC Connectors
RoHS:
Product:	Connectors
Number of Positions:	12 Position
Pitch:	2.7 mm
Termination Style:	SMD/SMT
Mounting Angle:	Right Angle
Contact Location:	Bottom Contact
Contact Plating:	Gold
Current Rating:	1 A
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 110 C
Packaging:	Reel
Brand:	Amphenol LTW
Gender:	Female
Housing Colour:	Black
Mounting Style:	SMD/SMT
Product Type:	FFC & FPC Connectors
Factory Pack Quantity:	600
Subcategory:	FFC & FPC Connectors
Tradename:	ZConnect

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

ZA-12CFRS-BA0001 Datasheet (PDF)

Product Catalogs

ZConnect Series (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690090
USHTS:: 8536694051
JPHTS:: 853669000
KRHTS:: 8536699000
TARIC:: 8536699099
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

ZConnect® Low-Profile LV214-Compliant Connectors

Amphenol LTW ZConnect^® Low-Profile LV214-Compliant Connectors are low-profile connectors (8mm maximum mated height) for space-saving. Amphenol LTW ZConnect Connectors are robust enough to meet the automotive requirements of LV214 (VW75174). The series ranges from 8 to 40 contacts at 1A up to 120V_DC with 0.9mm/1.8mm/2.7mm pitch. The connectors include mated and unmated versions and an IPx67 option.
