502790-6091

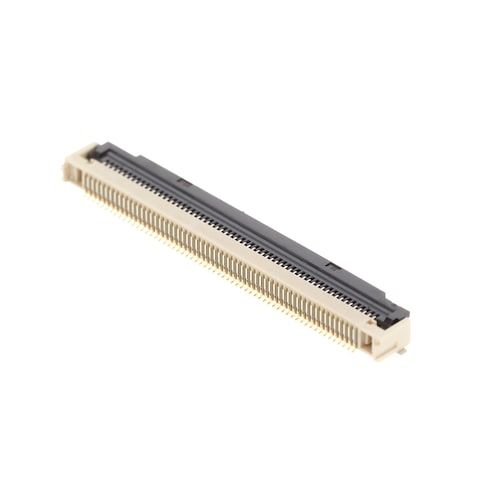

Name: Molex 502790-6091
Brand: Molex
SKU: 538-502790-6091
Price: 58524 IDR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

538-502790-6091

Mfr. No:

502790-6091

Mfr.:

Molex

Description:

FFC & FPC Connectors 0.5 FPC ZIF E/O BTMH Assy60CktEmbsTpPkg

Datasheet:

502790-6091 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Molex 502790-6091

In Stock: 7.738

Stock:: 7.738 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 6 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 7738 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

Rp-

Ext. Price:

Rp-

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 2000)

Cut Tape

MouseReel™ (+Rp98.000)

Pricing (IDR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	Rp58.524	Rp58.524
	Rp49.901	Rp499.010
	Rp46.782	Rp1.169.550
	Rp44.581	Rp2.229.050
	Rp42.379	Rp4.237.900
	Rp39.811	Rp9.952.750
	Rp37.793	Rp18.896.500
	Rp36.142	Rp36.142.000
Full Reel (Order in multiples of 2000)
	Rp29.170	Rp58.340.000

† A MouseReel™ fee of Rp98.000 will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Molex
Product Category:	FFC & FPC Connectors
RoHS:
Product:	Board Mount
Number of Positions:	60 Position
Pitch:	0.5 mm
Termination Style:	SMD/SMT
Mounting Angle:	Right Angle
Contact Location:	Bottom Contact
Contact Plating:	Gold
Current Rating:	500 mA
Series:	502790
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Actuation Type:	ZIF
Brand:	Molex
Housing Colour:	Beige
Housing Material:	Liquid Crystal Polymer (LCP)
Mounting Style:	SMD/SMT
Product Type:	FFC & FPC Connectors
Factory Pack Quantity:	2000
Subcategory:	FFC & FPC Connectors
Tradename:	Easy-On
Voltage Rating:	50 V
Unit Weight:	548,380 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

502790-6091 Datasheet

PCN

Product Change Notification (PDF)

RoHS Certificate (PDF)

CNHTS:: 8536901100
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Connected Home Solutions

Molex Connected Home Solutions help users design intelligent and integrated smart home systems. Smart appliances and thermostats, networked security and lighting, and wireless media devices feature prominently in connected homes. From capacitive switches and LED displays to antennas and USB connectors, an extensive Molex portfolio supports a wide range of modern home applications.

Easy-On FFC/FPC Connectors

Molex Easy-On FFC/FPC Connectors are ideal for tight-packaging applications and come in various pitch options, and include features to meet a wide variety of space and usage needs for applications in all markets. Molex Easy-On FFC/FPC Connectors are available with push and flip-style actuators, which are pre-assembled covers that secure the connection between the FFC/FPC and the connector terminals. Molex is continually developing lower-profile and higher-density versions to meet the downsizing needs of electronic equipment makers.

Augmented Reality

Augmented Reality (AR) can go beyond video games and offer advantages to various industries. AR improves both safety and efficiency and allows engineers freedom from physical constraints, and Molex solutions keep electronic designs secure and electrical connections reliable. Discover new realities in augmented reality and examine the key products empowering companies to develop AR products and technologies that are enhancing human capabilities in manufacturing applications.

0.50mm Easy-On Front-Flip FFC/FPC Connectors

Molex 0.50mm Pitch Easy-On Front-Flip FFC/FPC Connectors feature a robust Easy-On actuator and cable-tab. The actuator rotates back 115° to provide a wide access area for cable insertion and extraction. The cable-tab feature provides cable guidance and ensures secure retention. Constructed using high-temperature materials, these connectors meet rigorous environmental standards, including RoHS and halogen-free requirements. Molex 0.50mm Pitch Easy-On Front-Flip FFC/FPC Connectors are well-suited for LCD and PDP flat-panel displays, optical disk drives, car audio, notebook PC, tablet PC, portable game LCDs, and personal navigation equipment. The Easy-On family includes a 1.90mm height single-bottom contact connector.

FFC/FPC Connectors

Molex Flexible Flat Cable / Flexible Printed Circuit (FFC/FPC) Connectors feature a variety of product line-ups that combine signal reliability, compactness, a wide circuit size range, and cable style. Molex FFC/FPC connectors have a one to 136 circuit design and a 0.2mm to 2.54mm pitch range, depending on the model.

Miniaturization Solutions

Molex Miniaturization Solutions are ideal for a vast array of applications such as automotive, smart devices, mobile devices, and medical technology. These connectors provide space savings, high-density signals, and durability. The miniaturization of Molex connectors offers the benefit of fitting more components into smaller spaces, leading to increased functionality without the increased size or weight.
