STGAP2SICSCTR

Name: STMicroelectronics STGAP2SICSCTR
Brand: STMicroelectronics
SKU: 511-STGAP2SICSCTR
Price: 68614 IDR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

511-STGAP2SICSCTR

Mfr. No:

STGAP2SICSCTR

Mfr.:

STMicroelectronics

Description:

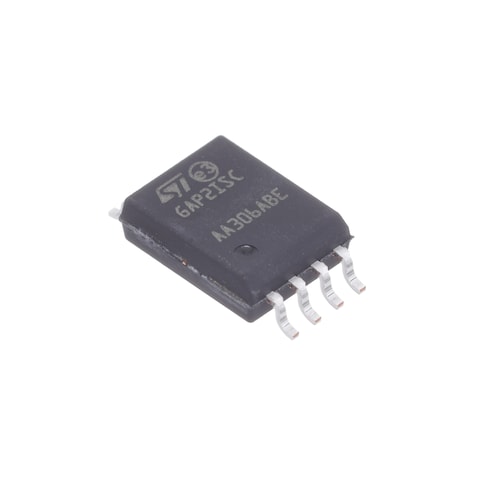

Galvanically Isolated Gate Drivers Galvanically isolated 4 A single gate driver for SiC MOSFETs
