STGB40V60F

Name: STMicroelectronics STGB40V60F
Brand: STMicroelectronics
SKU: 511-STGB40V60F
Price: 66963 IDR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

511-STGB40V60F

Mfr. No:

STGB40V60F

Mfr.:

STMicroelectronics

Description:

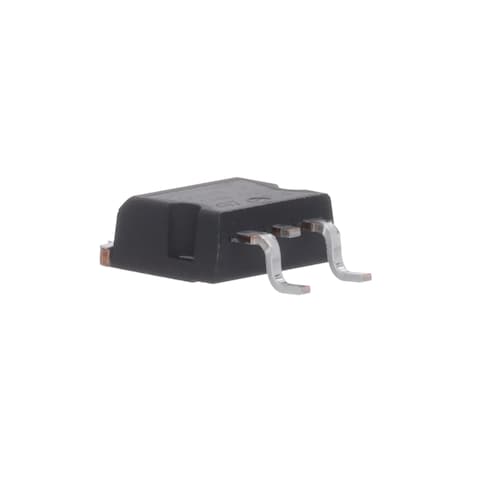

IGBTs Trench gate field-stop IGBT, V series 600 V, 40 A very high speed

Complete Your Design

Datasheet:

STGB40V60F Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about STMicroelectronics STGB40V60F

In Stock: 74

Stock:: 74 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 15 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

Rp-

Ext. Price:

Rp-

Est. Tariff:

Packaging:

Full Reel (Order in multiples of 1000)

Cut Tape

MouseReel™ (+Rp98.000)

Pricing (IDR)

Qty.	Unit Price	Ext. Price
Cut Tape / MouseReel™ ^†
	Rp66.963	Rp66.963
	Rp43.663	Rp436.630
	Rp34.124	Rp3.412.400
	Rp28.620	Rp14.310.000
Full Reel (Order in multiples of 1000)
	Rp24.584	Rp24.584.000
	Rp23.299	Rp46.598.000

† A MouseReel™ fee of Rp98.000 will be added and calculated in your basket. All MouseReel™ orders are non-cancellable and non-returnable. ↩

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	STMicroelectronics
Product Category:	IGBTs
RoHS:
Technology:	Si
Package/Case:	D2PAK
Mounting Style:	SMD/SMT
Configuration:	Single
Collector- Emitter Voltage VCEO Max:	600 V
Collector-Emitter Saturation Voltage:	1.8 V
Maximum Gate Emitter Voltage:	- 20 V, 20 V
Continuous Collector Current at 25 C:	80 A
Pd - Power Dissipation:	283 W
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 175 C
Series:	STGB40V60F
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	STMicroelectronics
Gate-Emitter Leakage Current:	250 nA
Product Type:	IGBT Transistors
Factory Pack Quantity:	1000
Subcategory:	IGBTs
Unit Weight:	2 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

STGB40V60F Datasheet (PDF)

PCN

CNHTS:: 8541290000
CAHTS:: 8541290000
USHTS:: 8541290065
JPHTS:: 8541290100
KRHTS:: 8541299000
TARIC:: 8541290000
MXHTS:: 85412999
ECCN:: EAR99

IGBT V Series

STMicroelectronics 600V trench-gate field-stop very high-speed IGBT V series features the industry's lowest Eoff. Combined with a saturation voltage as low as 1.8V and a maximum operating junction temperature of 175°C, they enable increased system efficiency, higher switching frequencies (up to 120kHz), and simplified thermal and EMI design.
