MEC5-150-01-L-DV-W1-K

Name: Samtec MEC5-150-01-L-DV-W1-K
Brand: Samtec
SKU: 200-MEC515001LDVW1K
Price: 292986 IDR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-MEC515001LDVW1K

Mfr. No:

MEC5-150-01-L-DV-W1-K

Mfr.:

Samtec

Description:

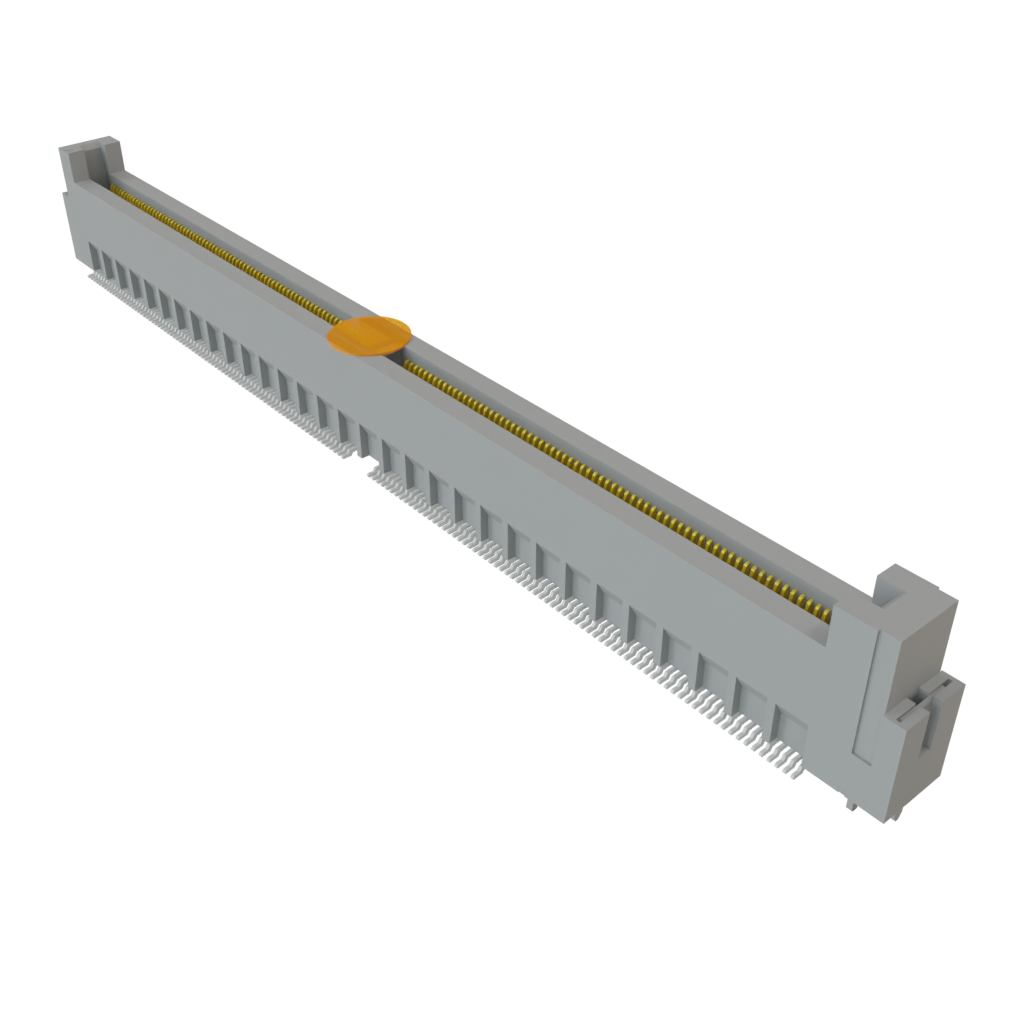

Standard Card Edge Connectors 0.50 mm Mini Edge Card Connector

Datasheet:

MEC5-150-01-L-DV-W1-K Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec MEC5-150-01-L-DV-W1-K

In Stock: 22

Stock:: 22 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

Rp-

Ext. Price:

Rp-

Est. Tariff:

Pricing (IDR)

Qty.	Unit Price	Ext. Price
	Rp292.986	Rp292.986
	Rp277.392	Rp2.773.920
	Rp266.934	Rp11.745.096
	Rp216.483	Rp23.813.130
	Rp201.806	Rp53.276.784
	Rp172.636	Rp87.353.816
	Rp143.282	Rp145.001.384

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Standard Card Edge Connectors
RoHS:
Product:	Sockets
Number of Positions:	300 Position
Pitch:	0.5 mm
Mounting Style:	Board Lock
Mounting Angle:	Straight
Contact Plating:	Gold
Series:	MEC5
Brand:	Samtec
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	VN
Current Rating:	1.5 A
Housing Material:	Liquid Crystal Polymer (LCP)
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 55 C
Number of Rows:	2 Row
Packaging:	Tray
Product Type:	Standard Card Edge Connectors
Factory Pack Quantity:	22
Subcategory:	Card Edge Connectors
Voltage Rating:	125 V

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8536901900
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

5G Solutions

Samtec 5G Solutions support the ultra-high frequencies and high data rates that emerging 5G technologies demand. As this 5G network quickly gains momentum, new systems, devices, and equipment are needed for technologies such as mmWave, Massive MIMO, beamforming, and full-duplex (FDX). Samtec 5G Solutions feature high-performance products for four applications: Test and Development Systems, Remote Radio and Active Antennas, Network Equipment, and Automotive and Transportation.

High-Speed Edge Card Connectors

Samtec High-Speed Edge Card Connectors feature a wide variety of pitches, including 0.5mm, 0.635mm, 0.8mm, 1mm, 1.27mm, 1.6mm, and 2mm. Mounting angles include straight, right, and vertical. These connectors are offered in an expansive range of mounting styles such as edge mount, board lock, mounting peg, SMD/SMT, straddle mount, through hole, and more. The number of positions on Samtec High-Speed Edge Card Connectors ranges from 8 to 300.

MEC5 Extreme Density Micro Edge Card Sockets

Samtec MEC5 Extreme Density Micro Edge Card Sockets are 0.50mm pitch edge card sockets with a justification beam. This design allows high-speed signals to pass through an incredibly dense connector while keeping the mating PCB at a reasonable cost. The justification beam of the socket is designed to shift the card into proper alignment with the contacts allowing for a standard board tolerance on cards that typically would not work with ultra-fine pitch connectors. Manufacturing costs are optimized, creating 30% to 50% PCB cost savings and a high yield for standard cards.
