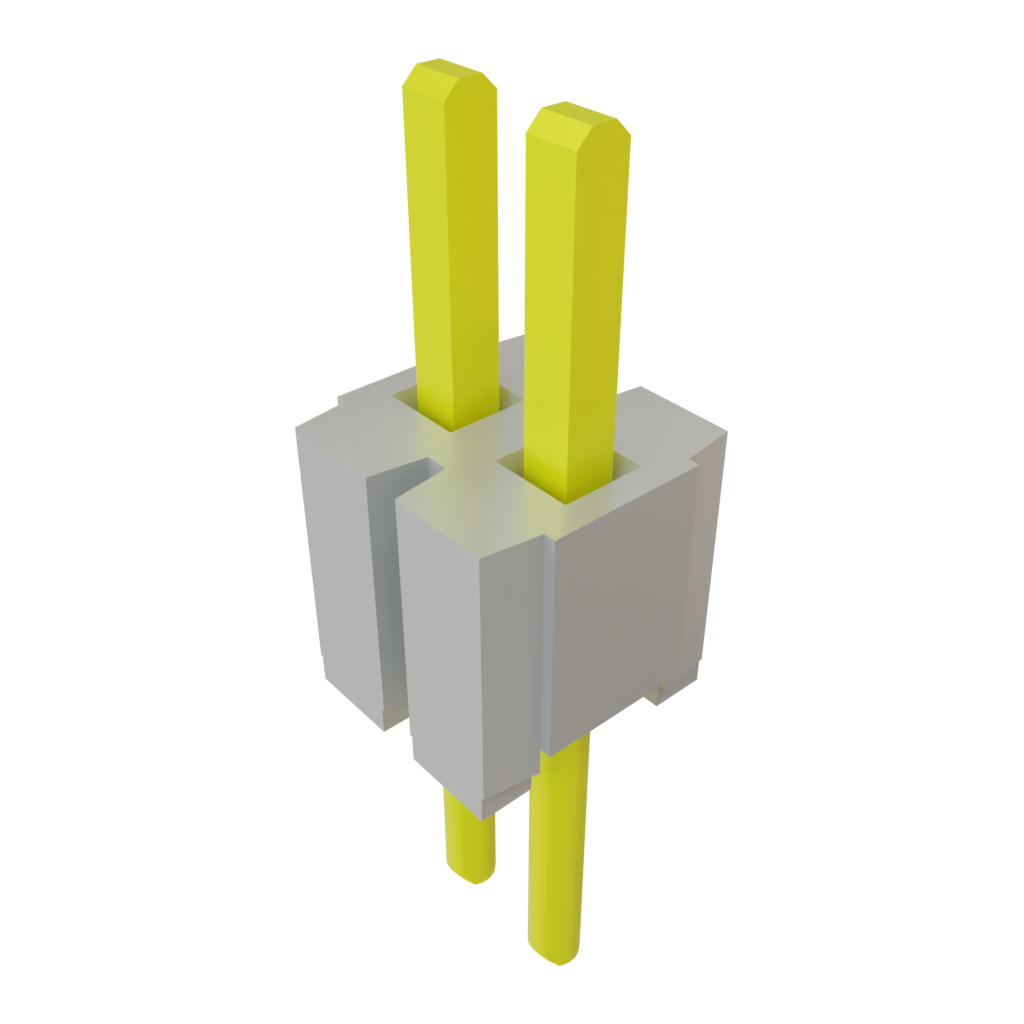

MTMS-102-02-G-S-100

Name: Samtec MTMS-102-02-G-S-100
Brand: Samtec
SKU: 200-MTMS10202GS100
Price: 7705 IDR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-MTMS10202GS100

Mfr. No:

MTMS-102-02-G-S-100

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors .050 x .100 Variable Post Height Micro Terminal Strip

Datasheet:

MTMS-102-02-G-S-100 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 252

Stock:: 252 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 1 Week Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

Rp-

Ext. Price:

Rp-

Est. Tariff:

Pricing (IDR)

Qty.	Unit Price	Ext. Price
	Rp7.705	Rp7.705
	Rp7.614	Rp190.350
	Rp5.907	Rp295.350
	Rp4.770	Rp477.000
	Rp4.073	Rp2.036.500
	Rp3.211	Rp3.211.000
	Rp2.917	Rp7.292.500
	Rp2.348	Rp11.740.000

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
Product:	Headers
Number of Positions:	2 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	1 Row
Termination Style:	Solder
Mounting Angle:	Straight
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	MTMS
Packaging:	Bulk
Application:	Optional Polarization of Single or Double
Brand:	Samtec
Mounting Style:	Straight Pin
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	1
Subcategory:	Board to Board & Mezzanine Connectors
Termination Post Length:	2.54 mm
Tradename:	Flex Stack

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

MTMS-102-02-G-S-100 Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Dimensional Drawing, Footprint, and Part Number Configuration

CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).
