QSH-030-01-L-D-A-RT1

Name: Samtec QSH-030-01-L-D-A-RT1
Brand: Samtec
SKU: 200-QSH03001LDART1
Price: 257578 IDR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-QSH03001LDART1

Mfr. No:

QSH-030-01-L-D-A-RT1

Mfr.:

Samtec

Description:

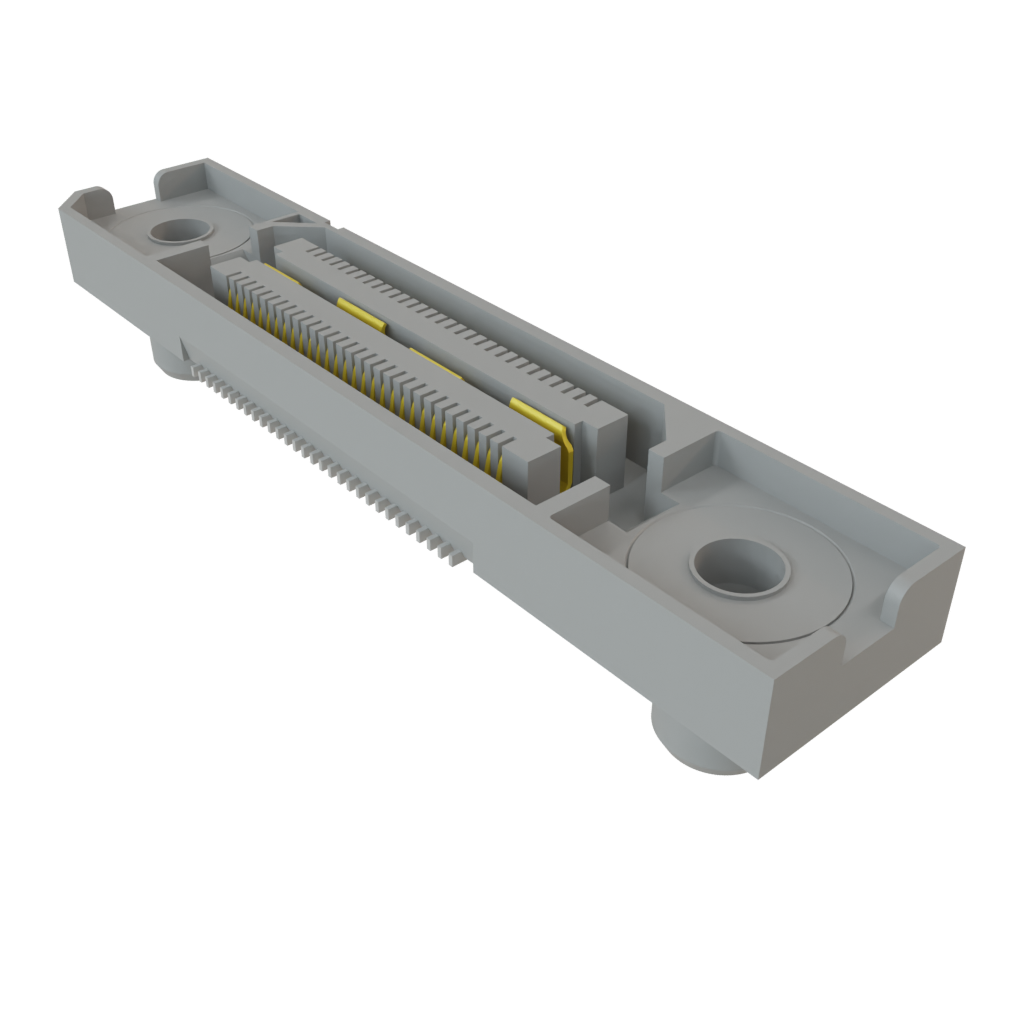

Board to Board & Mezzanine Connectors 0.50 mm Q Strip High-Speed Ground Plane Socket Strip

Datasheet:

QSH-030-01-L-D-A-RT1 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec QSH-030-01-L-D-A-RT1

In Stock: 91

Stock:: 91 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 4 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

Rp-

Ext. Price:

Rp-

Est. Tariff:

Pricing (IDR)

Qty.	Unit Price	Ext. Price
	Rp257.578	Rp257.578
	Rp214.098	Rp41.749.110
	Rp192.266	Rp87.481.030
2.405	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	60 Position
Pitch:	0.5 mm (0.02 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Straight
Current Rating:	2 A
Voltage Rating:	175 VAC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	QSH
Packaging:	Tray
Application:	Power, Signal
Brand:	Samtec
Flammability Rating:	UL 94 V-0
Mounting Style:	Mounting Peg
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	65
Subcategory:	Board to Board & Mezzanine Connectors
Tradename:	Q Strip
Unit Weight:	346,200 mg
