SEAFC-40-5.0-L-06-2-N-K-TR

Name: Samtec SEAFC-40-5.0-L-06-2-N-K-TR
Brand: Samtec
SKU: 200-SEAFC405L062NKTR
Price: 383615 IDR
Availability: InStock

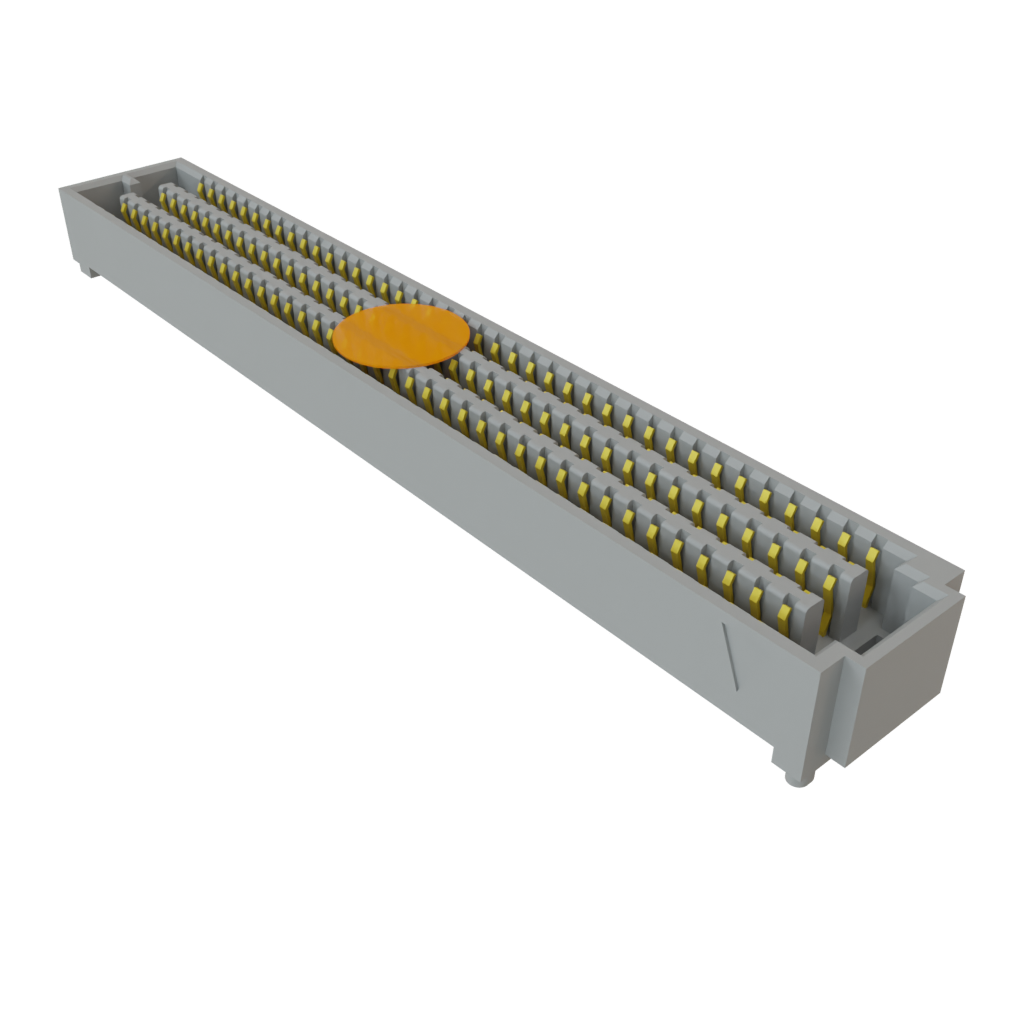

Images are for reference only
See Product Specifications

Mouser No:

200-SEAFC405L062NKTR

Mfr. No:

SEAFC-40-5.0-L-06-2-N-K-TR

Mfr.:

Samtec

Description:

Board to Board & Mezzanine Connectors 1.27MM SEARAY HS HD ARRAY SCKT

Datasheet:

SEAFC-40-5.0-L-06-2-N-K-TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec SEAFC-40-5.0-L-06-2-N-K-TR

In Stock: 324

Stock:: 324 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 8 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

Rp-

Ext. Price:

Rp-

Est. Tariff:

Pricing (IDR)

Qty.	Unit Price	Ext. Price
	Rp383.615	Rp383.615
	Rp363.067	Rp3.630.670
	Rp349.491	Rp8.737.275
	Rp340.869	Rp17.043.450
	Rp279.226	Rp27.922.600
	Rp258.495	Rp64.623.750
Full Reel (Order in multiples of 375)
	Rp258.495	Rp96.935.625
	Rp217.400	Rp163.050.000
2.250	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Sockets
Number of Positions:	240 Position
Pitch:	1.27 mm (0.05 in)
Number of Rows:	6 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Current Rating:	400 mA
Voltage Rating:	120 VAC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	SEAFC
Packaging:	Reel
Packaging:	Cut Tape
Application:	Power, Signal
Brand:	Samtec
Mounting Style:	Cable
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	375
Subcategory:	Board to Board & Mezzanine Connectors
Termination Post Length:	5.05 mm
Tradename:	SEARAY

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

SEAFC-40-5.0-L-06-2-N-K-TR Datasheet (PDF)

Images


Specification Sheets

Technical Resources

Test Report (PDF)

CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

High-Speed Cable Assemblies

Samtec High-Speed Cable Assemblies include AcceleRate® slim body, ERCD 0.80mm Edge Rate®, HLCD high-speed hermaphroditic, HQCD 0.50mm Q Strip®, and SEAC SEARAY™ series. The AcceleRate cable assembly consists of the ARC6 slim cable body that mates together with the ARF6 series for a secure connection. The ERCD 0.80mm Edge Rate assemblies use Samtec's Eye Speed cable to provide a 14Gbps performance and feature a double-row system to 120 pins and a standard metal latching system. Eye Speed cable technology offers excellent signal integrity performance with an individual copper serve or braid shielding, 26AWG to 38AWG coax and twinax construction, and 20Ω, 50Ω, 85Ω, and 100Ω ratings.

Flexible Stacking Connectors

Samtec Flex Stacking Board Connectors feature a large variety of board-to-board connectors with design flexibility. These Samtec board-to-board connector systems are available in a variety of pitches, densities, stack heights, orientations, and other standard or modified options, making it easy to find the right connector for any application. Flex-Stack options include one-piece, low profile pass-through, elevated, hermaphroditic, shrouded, coplanar, parallel, and perpendicular. Post heights are adjustable in increments of 0.005” (0.13mm).

SEAC SEARAY™ High-Speed Array Cable Assemblies

Samtec SEAC SEARAY™ High-Speed Array Cable Assemblies offer a 1.27mm pitch and 50Ω single-ended signal routing. This cable assembly series mates with SEARAY SEAFC sockets and features a 0.4A current rating, 120V_AC voltage, and an operating humidity range of up to 95%. Samtec SEAC SEARAY High-Speed Array Cable Assemblies are designed for high-speed micro pitch applications.
