TFSD-20-28-G-06.00-T-NDS

Name: Samtec TFSD-20-28-G-06.00-T-NDS
Brand: Samtec
SKU: 200-FSD2028G0600TNDS
Price: 536070 IDR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

200-FSD2028G0600TNDS

Mfr. No:

TFSD-20-28-G-06.00-T-NDS

Mfr.:

Samtec

Description:

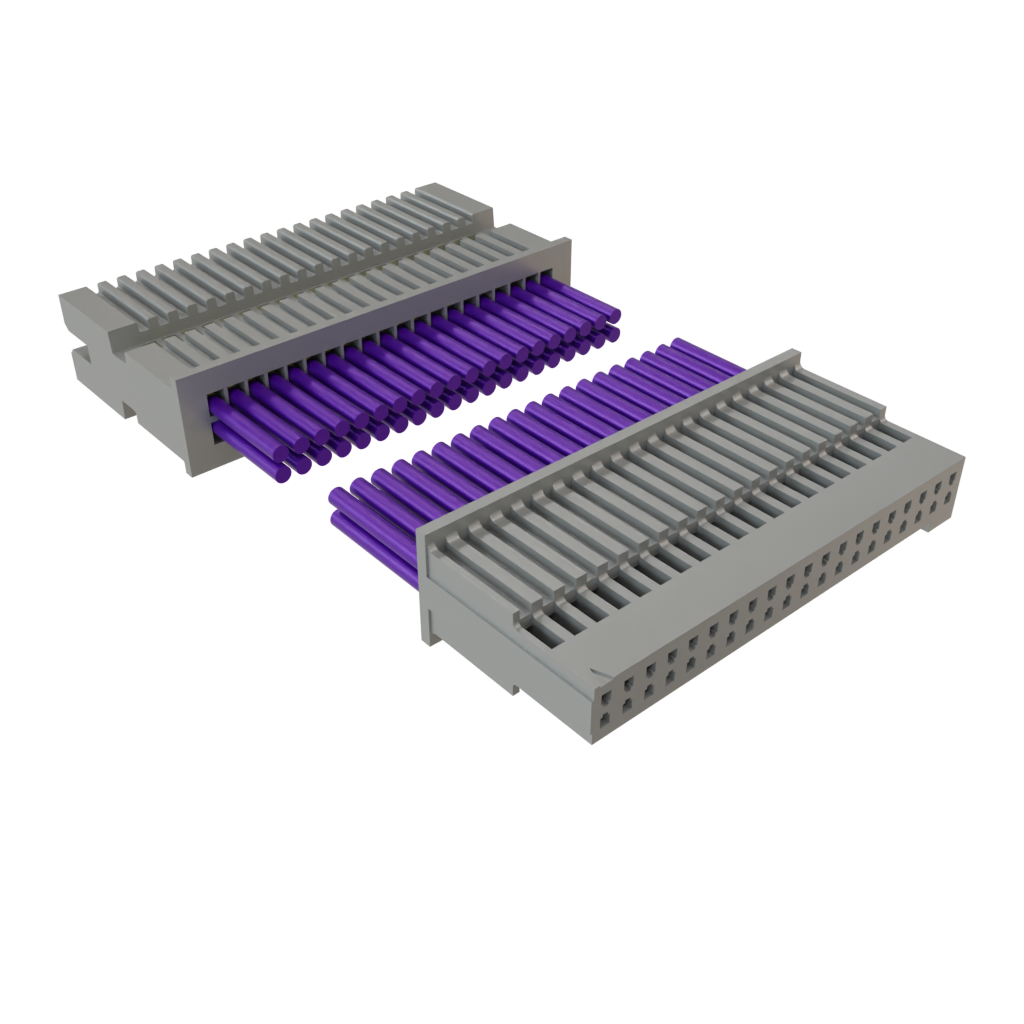

Rectangular Cable Assemblies .050 Tiger Eye Double Row Discrete Wire Cable Assembly

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Samtec TFSD-20-28-G-06.00-T-NDS

In Stock: 10

Stock:: 10

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 6

Expected 02/03/2026
Factory Lead Time:: 11

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

Rp-

Ext. Price:

Rp-

Est. Tariff:

Pricing (IDR)

Qty.	Unit Price	Ext. Price
	Rp536.070	Rp536.070
	Rp507.450	Rp5.074.500
	Rp496.993	Rp12.424.825
	Rp413.152	Rp41.315.200
	Rp391.871	Rp97.967.750
	Rp349.675	Rp174.837.500
750	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Samtec
Product Category:	Rectangular Cable Assemblies
RoHS:
Series:	TFSD
Product:	Discrete Wire Cable Assemblies
Type:	Double Row Discrete Cable
Connector End A:	Plug
Connector End A Pin Count:	40 Position
Connector End B:	Socket
Connector End B Pin Count:	40 Position
Gender:	Male / Female
Cable Length:	152.4 mm
Wire Gauge - AWG:	28 AWG
Jacket Colour:	Black
Packaging:	Bulk
Brand:	Samtec
Jacket Material:	Polyvinyl Chloride (PVC)
Pitch:	1.27 mm
Product Type:	Rectangular Cable Assemblies
Factory Pack Quantity:	1
Subcategory:	Cable Assemblies
Tradename:	Tiger Eye Discrete

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Images


Specification Sheets

Technical Resources

Test Report (PDF)

Technical Resources

TFSD (PDF)

CAHTS:: 8544420090
USHTS:: 8544429090
JPHTS:: 854442099
KRHTS:: 8544422090
TARIC:: 8544429090
MXHTS:: 8544429999
BRHTS:: 85444200
ECCN:: EAR99

TFSDx/TSDF/T1M44 0.050" Discrete Wire Connectors

Samtec TFSD, TFSDT, TSDF, and T1M44-x 0.050" Discrete Wire Connectors and Cable Assemblies feature the high-reliability Tiger Eye™ contact system with shrouded, polarized, and keyed variants. These housings, cable assemblies, and terminals offer a 0.050" (1.27mm) pitch, black LCP insulator, and gold-plated BeCu contacts in a 30AWG to 28AWG range. The 0.050" (1.27mm) Discrete Wire components range from six to 100 positions and mate with the SFM, SFC (-TR requires TFM-WT option), and SFML (-XL option required) sockets.

Discrete Wire Components & Cable Assemblies

Samtec Discrete Wire Components and Cable Assemblies offer significant space savings and design flexibility in cable-to-board, cable-to-cable, and cable-to-panel applications. This discrete wire family is ideal for a variety of industries, including industrial, automation, military, automotive, and medical. The lineup is available in pitches from 1mm to 4.19mm, with a wire range from 30AWG to 16AWG. Samtec Discrete Wire Components and Cable Assemblies feature a comprehensive selection of bodies, contacts, and terminals with rugged latching, individually shrouded or high-reliability Tiger Eye™ contact systems, ultra-micro-power and high-power versions, keying, polarization, and more.

1.27mm Tiger Eye™ Discrete Wire System

Samtec 1.27mm (0.050") Tiger Eye™ Discrete Wire System includes cables, plugs, sockets, and terminal strips designed for micro rugged applications. These products are available as components or complete assemblies and feature the high-reliability Tiger Eye contact system. Samtec 1.27mm Tiger Eye Discrete Wire System offers shrouded, polarized, and keyed products with PVC or Teflon cable. Metal latch and screw-down options are also available.
