PXD40-24WD12

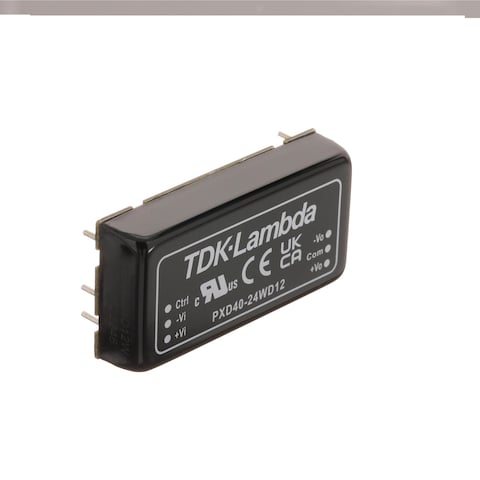

Name: TDK-Lambda PXD40-24WD12
Brand: TDK-Lambda
SKU: 967-PXD40-24WD12
Price: 1529139 IDR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

967-PXD40-24WD12

Mfr. No:

PXD40-24WD12

Mfr.:

TDK-Lambda

Description:

DC/DC Converters - Through Hole DC-DC, PCB Mount, Input 12/24VDC, Output +/-12V 1.666A, 40W

Datasheet:

PXD40-24WD12 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TDK-Lambda PXD40-24WD12

In Stock: 14

Stock:: 14 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 14 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

Rp-

Ext. Price:

Rp-

Est. Tariff:

Pricing (IDR)

Qty.	Unit Price	Ext. Price
	Rp1.529.139	Rp1.529.139
	Rp1.354.852	Rp67.742.600

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TDK-Lambda
Product Category:	DC/DC Converters - Through Hole
RoHS:
Isolation:	Isolated
Number of Outputs:	2 Output
Output Power:	40 W
Input Voltage - Min:	9 V
Input Voltage - Max:	36 V
Output Voltage-Channel 1:	12 V
Output Current-Channel 1:	1.6 A
Length:	50.8 mm (2 in)
Width:	25.4 mm (1 in)
Height:	10.2 mm (0.402 in)
Industry:	Industrial
Series:	PXD40W
Brand:	TDK-Lambda
Maximum Operating Temperature:	+ 105 C
Minimum Operating Temperature:	- 40 C
Mounting Style:	Through Hole
Product:	Isolated
Product Type:	Isolated DC-DC Converters
Factory Pack Quantity:	10
Subcategory:	DC-DC Converters
Part # Aliases:	URA2412LD-30WR3 URA2412LD-30WHR3 URA2415LD-30WR3 URA2415LD-30WHR3

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

PXD40-24WD12 Datasheet (PDF)

Models

Technical Resources

Videos

Product Video

USHTS:: 8504409580
JPHTS:: 850440090
TARIC:: 8504409590
ECCN:: EAR99

PXD40/PXD60 Single- & Dual-Output DC-DC Converters

TDK-Lambda PXD40 / PXD60 Single- and Dual-Output DC-DC Converters offer a wide 4:1 input range in a compact 2" x 1" industry-standard package. The industrial DC-DC converters offer high efficiency of up to 92% (60W) and 93% (40W) and typically draw a low 3mA input current when the remote On / Off function is used. This results in prolonged battery life for portable equipment. These 40W or 60W modules have six-sided shielding to reduce radiated noise. Other features include IEC / UL / CSA / EN 62368-1 certification and support for dual 12V / 24V or 24V / 48V system voltages. TDK-Lambda PXD40 / PXD60 Single- and Dual-Output DC-DC Converters are ideal for industrial, testing, communications, and broadcasting applications.
