1-640385-6

Name: TE Connectivity 1-640385-6
Brand: TE Connectivity / AMP
SKU: 571-16403856
Price: 24951 IDR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-16403856

Mfr. No:

1-640385-6

Mfr.:

TE Connectivity / AMP

Description:

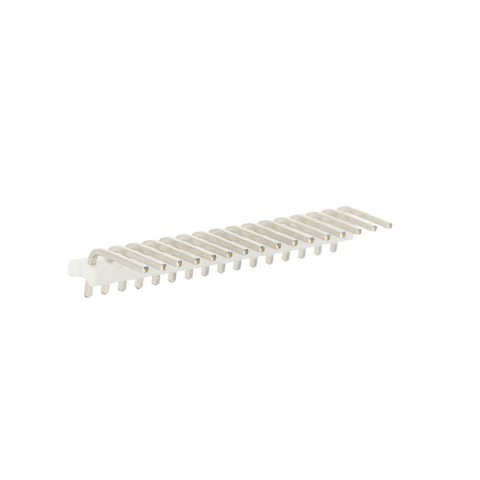

Headers & Wire Housings FLAT HEADER R.A. 16P Square post tin

Datasheet:

1-640385-6 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity / AMP 1-640385-6

In Stock: 145

Stock:: 145

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 500

Expected 05/05/2026
Factory Lead Time:: 13

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

Rp-

Ext. Price:

Rp-

Est. Tariff:

Pricing (IDR)

Qty.	Unit Price	Ext. Price
	Rp24.951	Rp24.951
	Rp21.098	Rp210.980
	Rp20.364	Rp509.100
	Rp19.814	Rp990.700
	Rp19.080	Rp1.908.000
	Rp17.245	Rp4.311.250
	Rp13.209	Rp6.604.500
	Rp12.200	Rp12.200.000
	Rp11.668	Rp29.170.000

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Headers & Wire Housings
RoHS:
Product:	Headers
Type:	Pin Strip
Number of Positions:	16 Position
Pitch:	3.96 mm (0.156 in)
Number of Rows:	1 Row
Mounting Style:	Through Hole
Termination Style:	Solder Pin
Mounting Angle:	Right Angle
Contact Gender:	Pin (Male)
Contact Plating:	Tin
Termination Post Length:	3.18 mm (0.125 in)
Series:	MTA-156
Tradename:	MTA
Application:	Wire-to-Board
Brand:	TE Connectivity / AMP
Contact Material:	Copper Alloy
Current Rating:	7 A
Flammability Rating:	UL 94 V-0
Housing Colour:	White
Housing Material:	Polyester
Product Type:	Headers & Wire Housings
Factory Pack Quantity:	500
Subcategory:	Headers & Wire Housings
Voltage Rating:	600 V
Unit Weight:	3 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1-640385-6 Datasheet

Images

Models

1-640385-6 Symbol & Footprint by SnapMagic

RoHS Certificate (PDF)

CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

MTA Connector System

TE Connectivity's (TE) Mass Termination Assembly (MTA) Connector System is a wire-to-board and wire-to-wire system based on insulation displacement contact (IDC) technology. MTA 100 connectors have contacts in a single row on .100 inch (2.54mm) centers, while MTA 156 connector contacts are in a single row on .156 inch (3.96mm) centers. These connectors provide wire feed-through capability for daisy-chain applications. IDCs are used to terminate a range of conductor sizes. Ribbon cable can also be terminated when the appropriate receptacle assembly and strain relief cover are used. Header assemblies for board-mount applications include right-angle and vertical-mount products, which are available in through-hole and surface-mount configurations. TE MTA connectors are ideal for household appliances, fitness equipment, garage door openers, gasoline pumps, coin changers, and vending machines.
