1-2314846-2

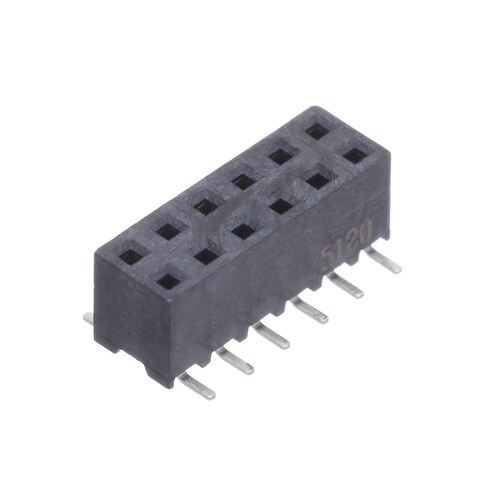

Name: TE Connectivity 1-2314846-2
Brand: TE Connectivity
SKU: 571-1-2314846-2
Price: 62560 IDR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-1-2314846-2

Mfr. No:

1-2314846-2

Mfr.:

TE Connectivity

Description:

Board to Board & Mezzanine Connectors 12P,2MM,BB,REC,DRVT SMD,AU.76,TB,W/CP

Datasheet:

1-2314846-2 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 1-2314846-2

In Stock: 2.322

Stock:: 2.322 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 15 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

Rp-

Ext. Price:

Rp-

Est. Tariff:

Pricing (IDR)

Qty.	Unit Price	Ext. Price
	Rp62.560	Rp62.560
	Rp47.883	Rp1.197.075
	Rp44.214	Rp3.979.260
	Rp39.994	Rp21.596.760
	Rp38.527	Rp39.875.445
	Rp34.124	Rp76.779.000

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Receptacles
Number of Positions:	12 Position
Pitch:	2 mm (0.079 in)
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Angle:	Vertical
Current Rating:	2 A
Voltage Rating:	125 VAC
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Series:	AMPMODU 2 mm
Packaging:	Tube
Brand:	TE Connectivity
Flammability Rating:	UL 94 V-0
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	45
Subcategory:	Board to Board & Mezzanine Connectors
Unit Weight:	487 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

1-2314846-2 Datasheet

RoHS Certificate (PDF)

Compliance Codes

CNHTS:: 8536901900
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Origin Classifications

Country of Origin:: China
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

AMPMODU 2mm Connector System Headers & Receptacles

TE Connectivity AMPMODU 2mm Connector System Headers and Receptacles offer a maximum 2A current, 125VAC operating voltage rating, and 3 to 20 positions. These breakaway headers and board-to-board receptacles occupy 38% less space than traditional 2.54mm centreline products. AMPMODU connectors are designed for use across multiple industry segments where space constraints are of particular concern. TE AMPMODU 2mm Connector System Headers and Receptacles are ideal for PLC, servo drives, industrial controls, and material handling applications.
