2292798-1

Name: TE Connectivity 2292798-1
Brand: TE Connectivity
SKU: 571-2292798-1
Price: 129156 IDR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

571-2292798-1

Mfr. No:

2292798-1

Mfr.:

TE Connectivity

Description:

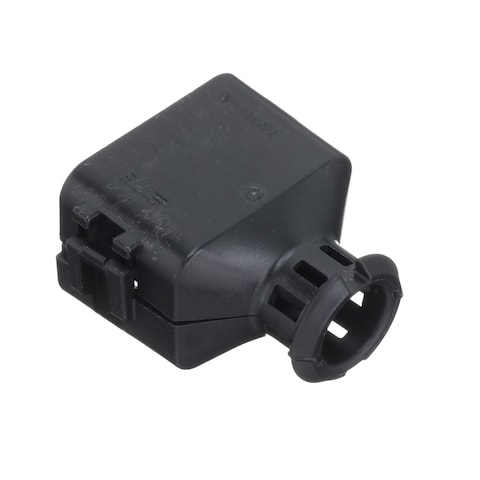

Automotive Connectors AS16 BACKSHELL 3P PLUG SMOOTH EXIT

Datasheet:

2292798-1 Datasheet

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about TE Connectivity 2292798-1

In Stock: 975

Stock:: 975 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 13 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

Rp-

Ext. Price:

Rp-

Est. Tariff:

Pricing (IDR)

Qty.	Unit Price	Ext. Price
	Rp129.156	Rp129.156
	Rp124.936	Rp1.249.360
	Rp119.799	Rp2.994.975

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	TE Connectivity
Product Category:	Automotive Connectors
RoHS:
Product:	Accessories
Accessory Type:	Backshell
Number of Positions:	3 Position
Gender:	Plug (Male)
Brand:	TE Connectivity
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	US
Product Type:	Automotive Connectors
Factory Pack Quantity:	1
Subcategory:	Automotive Connectors
Part # Aliases:	AS16-ST-60-03-ST
Unit Weight:	4,150 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

2292798-1 Datasheet

PCN

Product Change Notification (PDF)

RoHS Certificate (PDF)

CNHTS:: 8538900000
CAHTS:: 8538903900
USHTS:: 8538906000
JPHTS:: 853890000
TARIC:: 8538909999
MXHTS:: 8538900100
BRHTS:: 85389090
ECCN:: EAR99

AMPSEAL 16 Connector System

TE Connectivity's (TE) AMPSEAL 16 Connector System is targeted for off-road and heavy-duty industrial applications. Designed to the highest standards in performance, TE's AMPSEAL 16 Connectors feature wire-to-wire and wire-to-device options. Both Pin and Receptacle housings come fully assembled, offering a one-piece approach for applied cost savings and ease of ordering. The connector family utilizes size 16 heavy-duty stamped and formed contacts offering increased terminal strength, 13A current rating, and a wide wire range of 20AWG to 14AWG. TE's AMPSEAL 16 Connector System is available in 2 to 12 positions and features a rectangular, thermoplastic housing and an integrated latch for mating.
