Analog Devices Inc. Balanced Solutions Essentials Kit

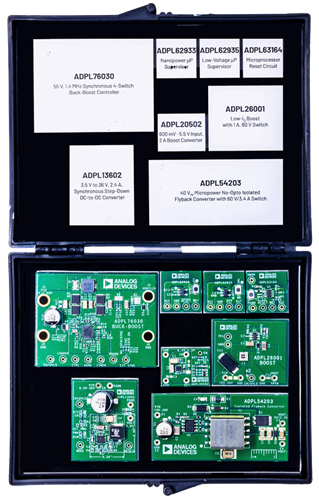

Analog Devices Balanced Solutions Essentials Kit provides products on ready-to-use boards for immediate testing and prototyping. The kit evaluates the ADPL76030, ADPL26001, ADPL13602, ADPL54203, ADPL20502, ADPL62933, ADPL62935, and ADPL63164. The ADI Balanced Solutions Essentials Kit features devices from the buck, boost, buck-boost, flyback, and high-performance supervisor product series.
Features
- Enables immediate testing of 8 power solutions and supervisors
- Includes buck and boost converters, buck/boost converter, no-opto isolated flyback, and high-performance supervisors
- Boards designed with through holes for prototyping on breadboards and existing circuits, and bench-top testing
Applications
- Data centers
- Consumer technology
Kit Contents
- ADPL76030 board
- ADPL26001 board
- ADPL13602 board
- ADPL54203 board
- ADPL20502 board
- ADPL62933 board
- ADPL62935 board
- ADPL63164 board
Required Equipment
- DC power supply with 12V, 5A output (ADPL76030, ADPL26001, ADPL13602, and ADPL54203)
- DC power supply with 2.5V, 1A output (ADPL20502)
- DC power supply with 3.3V, 0.5A output (ADPL62933, ADPL62935, and ADPL63164)
- Function generator-WDI watchdog input (ADPL62933, ADPL63164)
- One voltmeter
- Four banana-to-clip cables
Videos
Layout
Associated Products
Analog Devices Inc. ADPL76030 4-Switch Buck-Boost Controllers
4-Switch buck-boost controllers designed to regulate the output voltage and input or output current.
Analog Devices Inc. ADPL26001 Inverting Converter
Capable of developing either positive or negative output voltages with a single feedback pin.
Analog Devices Inc. ADPL13602 Synchronous Step-Down DC-DC Converters
High-efficiency device with integrated MOSFETs operating over an input-voltage range of 3.5V to 36V.
Dev Tools
Analog Devices Inc. ADPL13602EVKIT# Evaluation Kit
A proven design to evaluate the ADPL13602 high-efficiency, synchronous step-down DC-DC converter.
Analog Devices Inc. EVAL-ADPL76030EBZ Evaluation Board
Demonstrates the features of the ADPL76030, a synchronous 4-switch buck-boost DC/DC controller.
Analog Devices Inc. EVAL-ADPL54203-AZ Evaluation Board
Micropower no-opto isolated flyback converter featuring the ADPL54203.
