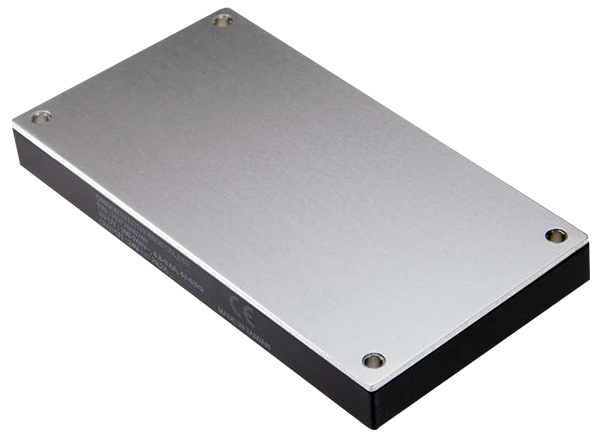

Cincon PDF700S 700W AC-DC Power Supplies deliver 700W of output power at single output voltages of 12VDC, 24VDC, 28VDC, 48VDC, and 56VDC. These full brick size modules feature a 90VAC to 264VAC universal input range, efficiency up to 91.5%, baseplate cooling, and safety approval Class I IEC/EN/UL 62368-1. Standard control functions include remote on/off and adjustable output voltage of +5%, -5% (PDF700S560: +1.8%, -5%). Cincon PDF700S 700W AC-DC Power Supplies are fully protected against input undervoltage lockout (UVLO), output overcurrent, output overvoltage and overtemperature, and continuous short-circuit conditions. The series offers a case operating temperature range of -40°C to +100°C. An optional heat sink is available to extend the full power range of the units.
700W output power at single output voltages of 12VDC, 24VDC, 28VDC, 48VDC, and 56VDC
90VAC to 264VAC universal input range
Efficiency up to 91.5%
Full brick size
Safety approval Class I IEC/EN/UL 62368-1
5000m operating altitude
Overtemperature, overvoltage, and continuous short-circuit protection
