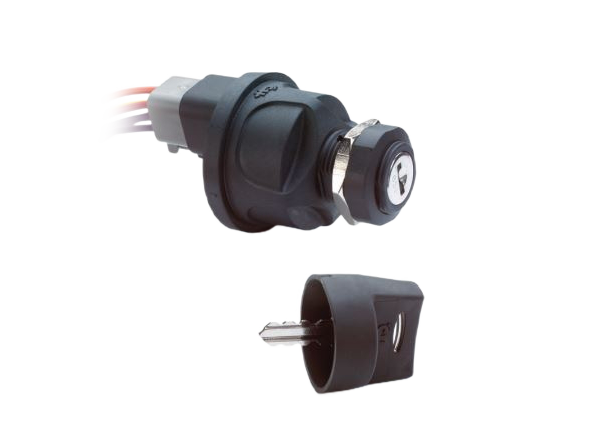

Littelfuse 95060 Series Keylock Control Switches feature 2A to 10A current range, up to 48VDC voltage rating, and engineered thermoplastic construction. These ignition switches can also be used as rotary switches. They stand up to mechanical shock and vibration and will not corrode or rust due to the rugged plastic construction. The keylock switches offer a fully sealed contact area using O-rings and ultrasonic welding, an integrated sealed Deutsch connector interface, and are supplied with two matching keys, with or without a boot. Littelfuse 95060 Series Keylock Control Switches are available with a variety of options, including position, spring return, length, and anti-start.
Engineered thermoplastic construction
Fully sealed contact area using O-rings and ultrasonic welding
Integrated sealed Deutsch connector interface
Anti-restart and spring return options available
Tested to SAE J259 for ignition switches
Supplied with two matching keys, with or without boot
