Microchip Technology KSZ8563 Ethernet Switches
Microchip Technology KSZ8563 Ethernet Switches are highly integrated IEEE 802.3-compliant networking devices. These Microchip Technology switches incorporate a layer-2+ managed high-performance Ethernet switch, two 10BASE-T/100BASE-TX physical layer transceivers (PHY), associated MAC units, and one MAC port. The MAC offers a configurable RGMII/MII/RMII interface for direct connection to a host processor/controller, another Ethernet switch, or an Ethernet PHY transceiver. These switches with Ethernet technology feature non-blocking wire-speed Ethernet switch fabric, traffic prioritization, full VLAN, QoS, and spanning tree support. Typical applications include automotive, industrial, real-time Ethernet networks, network measurement and control systems, and test/measurement equipment.
Features
- Switch management capabilities
- 10/100Mbps Ethernet switch basic functions
- Non-blocking store-and-forward switch fabric
- 9000 bytes jumbo packet support
- Rapid Spanning Tree Protocol (RSTP)
- One configurable External MAC port
- Two integrated PHY ports
- 100Base-TX/10Base-T IEEE 802.3
- Quiet-WIRE® filtering option for reduced emissions
- Fast link-up option
- Auto-negotiation and auto-MDI/MDI-X support
- Energy-Efficient Ethernet (EEE)
- Advanced switch capabilities
- IEEE 802.1Q VLAN support
- IEEE 802.1p/Q tag insertion/removal on per port basis
- IEEE 802.3x full-duplex flow control
- Half-duplex back-pressure collision control
- IGMP v1/v2/v3 snooping for multicast packet filtering
- IPv6 Multicast Listener Discovery (MLD) snooping
- IPv4/IPv6 QoS support
- Programmable rate limiting at ingress/egress ports
- EtherSynch® IEEE 1588v2 PTP
- Transparent Clock (TC) with an auto-correction update
- Master and slave Ordinary Clock (OC) support
- End to End (E2E) or Peer-to-Peer (P2P)
- PTP multicast and unicast message support
- EtherSynch Audio Video Bridging (AVB)
- Compliant with IEEE 802.1BA/AS/Qat/Qav standards
- gPTP time synchronization and credit-based traffic shaper
- Comprehensive configuration registers access
- High-speed 4-wire SPI and I2C interfaces provide access to all internal registers
- MII management interface provides access to all PHY registers
- Power management
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Energy detects power-down mode on cable disconnect
- Dynamic clock tree control
- Full-chip software power-down
Applications
- Automotive Ethernet
- Industrial Ethernet (Profinet, MODBUS, Ethernet/IP)
- Real-time Ethernet networks
- Industrial control/automation switches
- Networked measurement and control systems
- Test and measurement equipment

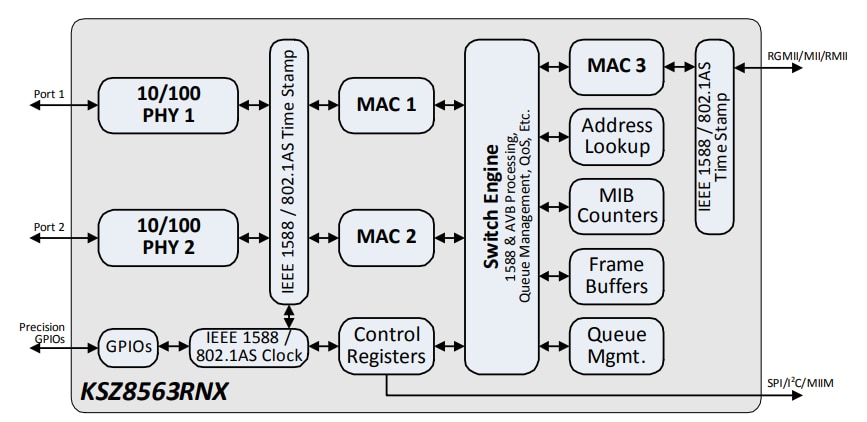

KSZ8563RNX Internal Block Diagram
