ROHM Semiconductor BD5250G-1TR Voltage Detector (Reset) IC
ROHM Semiconductor BD5250G-1TR Voltage Detector (Reset) IC is a free-time delay setting CMOS detector IC with an N-channel open drain output type. This IC detects a 0.9V to 5V voltage range with 0.1V increments and operates at a maximum temperature of 85°C. The BD5250G-1TR IC features Nano Energy™, ±30% time delay accuracy, 270nA typical ultra-low current consumption, and 70mA output current. This detector IC is available in the SSOP5 package and 2.90mm x 2.80mm x 1.25mm dimensions. The BD5250G-1TR IC is used in consumer devices that require voltage detection.
Features
- Nano Energy™
- N-channel open drain output type
- Delay time setting controlled by an external capacitor
- Available in 2.90mm x 2.80mm x 1.25mm dimensions and in a SSOP5 package
- Used in consumer devices that require voltage detection
Specifications
- Detection voltage accuracy:
- ±1% ±5mV (VDET = 0.9V to 1.6V)
- ±0.9% (VDET = 1.7V to 5V)
- 70mA output current
- -40°C to 85°C operating temperature range
- 0.9V to 5V (typical) detection voltage with 0.1V step
- 270nA (typical) ultra-low current consumption
- ±30% time delay accuracy (-40°C to 85°C, CT pin capacitor ≥1nF)

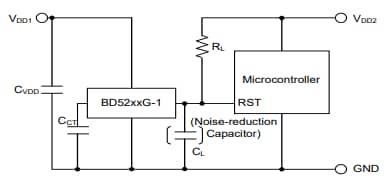

Application Circuit Diagram

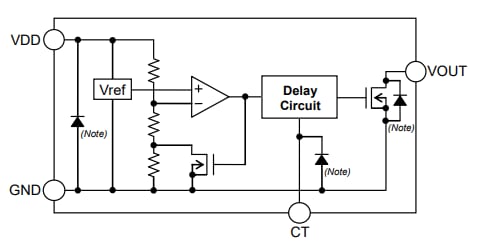

Block Diagram
