STMicroelectronics M24LR16E Dynamic NFC/RFID Tag

STMicroelectronics M24LR16E Dynamic NFC/RFID Tag features a dual-interface EEPROM, energy harvesting, I2C bus, and an ISO 15693 RF interface. This device is a contactless memory powered by the received carrier electromagnetic wave. The M24LR16E is organized as 2048 × 8 bits in the I2C mode and 512 × 32 bits in the ISO 15693 and ISO 18000-3 mode 1 RF mode. The M24LR16E also features an energy-harvesting analog output and a user-configurable digital output pin toggling during either RF write-in progress or RF busy mode.

The STMicroelectronics M24LR16E Dynamic NFC/RFID Tag is available in a compact ECOPACK2® package and is RoHS-compliant and Halogen-free.

Features

  • I2C interface
    • Two-wire I2C serial interface supports 400kHz protocol
    • Single supply voltage: -1.8V to 5.5V
    • Byte and Page Write (up to 4 bytes)
    • Random and Sequential read modes
    • Self-timed programming cycle
    • Automatic address incrementing
    • Enhanced ESD/latch-up protection
    • I2C timeout
  • Contactless interface
    • ISO 15693 and ISO 18000-3 mode 1 compatible 13.56MHz ±7kHz carrier frequency
    • To tag: 10% or 100% ASK modulation using 1/4 (26Kbit/s) or 1/256 (1.6Kbit/s) pulse position coding
    • From tag: load modulation using Manchester coding with 423kHz and 484kHz subcarriers in low (6.6kbit/s) or high (26kbit/s) data rate mode
    • Supports the 53kbit/s data rate with fast commands
    • Internal tuning capacitance: 27.5pF
    • 64-bit Unique Identifier (UID)
    • Read Block and Write (32-bit blocks)
  • Digital output pin
    • User configurable pin: RF write in progress or RF busy mode
    • Energy harvesting
    • Analog pin for energy harvesting
    • 4 sink current configurable ranges
  • Memory
    • 16-Kbit EEPROM organized into 2048 bytes in I2C mode and 512 blocks of 32 bits in RF mode
    • Write time: I2C: 5 ms (max.) / RF: 5.75ms including the internal verify time
    • More than 1 million write cycles
    • More than 40-year data retention
    • Multiple password protection in RF mode
    • Single password protection in I2C mode

Applications

  • IoT nodes (home automation, smart home, etc.)
  • Pairing and configuration of consumer applications
  • NFC accessories (headsets, speakers, etc.)
  • Wearable infotainment
  • Fitness equipment
  • Consumer electronics
  • Healthcare
  • Smart printers
  • Meters
  • Electronic shelf labels

Videos

Related Products

STMicroelectronics M24LRxE Dynamic NFC Tags

NFC RF interface allows remote programming and updates.

Learn Moreabout STMicroelectronics M24LRxE Dynamic NFC Tags View Productsrelated to STMicroelectronics M24LRxE Dynamic NFC Tags

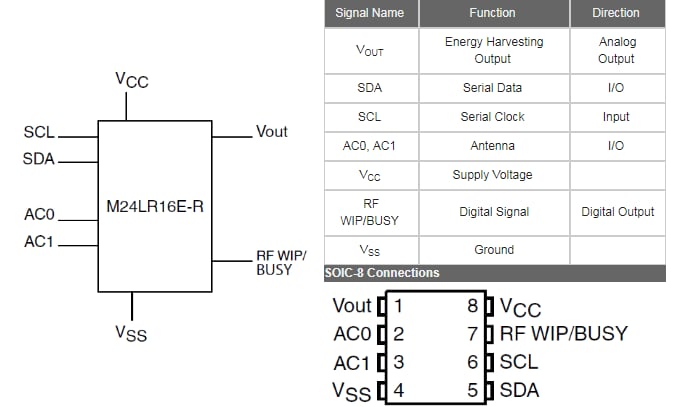

Logic Diagram

STMicroelectronics M24LR16E Dynamic NFC/RFID Tag

Block Diagram

Block Diagram - STMicroelectronics M24LR16E Dynamic NFC/RFID Tag
