STMicroelectronics STCH0x PWM Quasi-Resonant Controllers
STMicroelectronics STCH0x PWM Quasi-Resonant Controllers are designed for ultralow standby power supplies. The controllers have built-in HV start-up cells with zero power consumption. These ICs are the best choice to build high efficiency and ultralow standby consumption power supplies.
The STCH0x have fully integrated blocks for primary side constant current output regulation. The controllers have advanced power management with high overall and excellent dynamic performances.
Features
- Advanced power management for ultralow standby power consumptions (under 10mW at 230VAC)
- Fully integrated primary side constant current output regulation (CC)
- 650V embedded HV start-up circuit with zero power consumption
- Quasi-resonant (QR) zero voltage switching (ZVS) operation
- Automatic self-supply
- Accurate and adjustable output OVP with auto restart after fault
- Input voltage feedforward compensation for mains-independent CC regulation
- Intelligent frequency jitter for EMI suppression
- SO-8 package
Applications
- AC-DC chargers for smartphones, tablets, camcorders and other handheld equipment
- AC/DC adapters for STB, notebooks and auxiliary power supplies

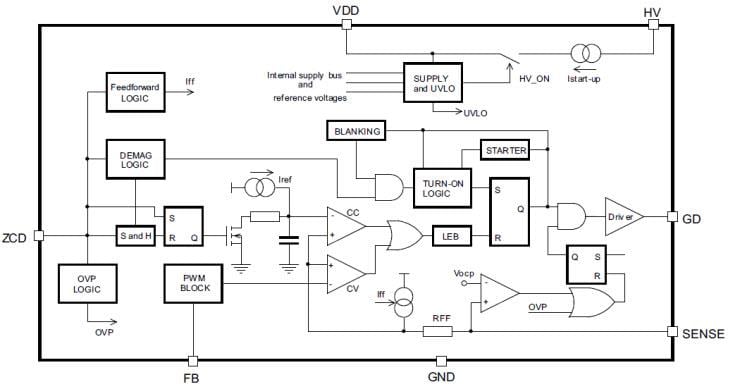

Block Diagram
Additional Resources
Evaluation Boards
STMicroelectronics STEVAL-USBPD27S 27W AC-DC Adapter Reference Design
Works as a USB Power Delivery (PD) provider with a single USB Type-C™ port.
STMicroelectronics STEVAL-SMACH15V1 USB Adapter Evaluation Board
Based on the STCH03 offline PWM controller for low standby adapters.
STMicroelectronics STEVAL-ISA193V2 Evaluation Board
Based on the STCH02 current mode controller designed for offline quasi-resonant flyback converters.
STMicroelectronics EVL80WLED-STCH03 Demonstration Board
Implements a wide range 80W LED driver for street lighting applications.
STMicroelectronics EVLSTCH03-45WPD USB Type-C Power Delivery Adapter
USBIF certified solution with an isolated power supply with a standalone USB PD controller.
