Texas Instruments DLP5532-Q1 Automotive DMD Micromirror Array
Texas Instruments DLP5532-Q1 Automotive DMD Micromirror Array combined with the DLPC230-Q1 DMD controller and TPS99000-Q1 system management and illumination controller achieves a high-performance automotive window display when illuminated onto a unique window film surface. The DLP5532-Q1 offers a 2:1 aspect ratiothat supports extensive aspect ratio designs, and the 1.3 million native pixels facilitate high-resolution content.
The TI DLP5532-Q1 0.55" DMD has more than three times the optical throughput of the preceding DLP3030-Q1 automotive DMD enabling larger and brighter displays for enhanced viewing experience. This chipset, coupled with LEDs and a projector, enables deeply saturated colors of 125% NTSC, extremely high brightness of more than 1,000 lumens, and >100:1 dimming ratio. The DLP5532-Q1 Automotive DMD Micromirror Array is configured for bottom illumination, allowing highly efficient and more compact optical engine designs.
The DLP5532-Q1 is housed in an S450 package with low thermal resistance, enabling more efficient thermal solutions.
Features
- The DLP5532-Q1 automotive chipset includes:
- DLP5532-Q1 DMD
- DLPC230-Q1 DMD controller
- TPS99000-Q1 system management and illumination controller
- 600MHz sub-LVDS DMD interface for low power and emission
- 10kHz DMD refresh rate over temperature extremes
- Built-in self-test of DMD memory cells
- Image performance optimized for window displays and other interior displays
- Qualified for automotive applications
- –40°C to 105°C operating DMD array temperature range
- 0.55inch diagonal micromirror array
- 7.6μm micromirror pitch
- ±12° micromirror tilt angle (relative to flat state)
- Bottom illumination for optimal efficiency and optical engine size
- Supports 1152 × 576 input resolution
- Up to 2304 x 1152 resolution with external GPU based diamond pre-processing
- Compatible with LED or laser illumination
Applications
- Window display for front, side, and rear vehicle windows
- Interior ceiling projectors
Videos

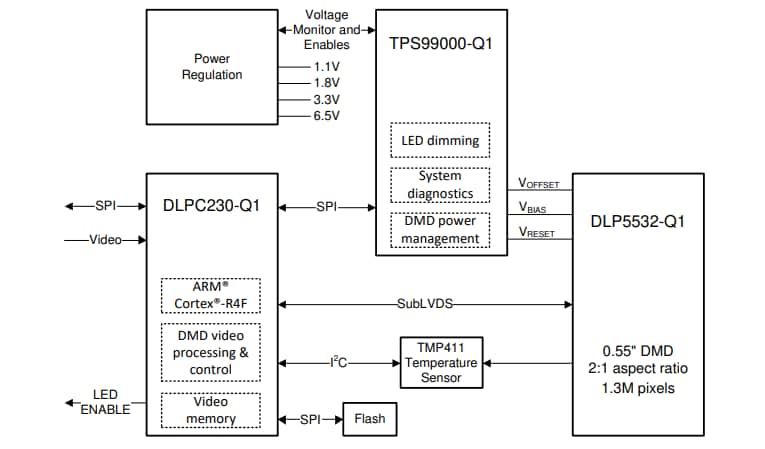

Block Diagram
Associated Products
Texas Instruments TPS99000x-Q1 System & Illumination Controller
Provides functions to support typical 5000:1 display dimming requirements for HUD applications.
Texas Instruments DLPC23x-Q1 DLP® Automotive DMD Controllers
Part of two DMD chipsets, the DLP5530-Q1 and DLP5531-Q1.
Related Development Tool
Texas Instruments DLP5532PROJHBQ1EVM Evaluation Module (EVM)
An automotive projector that supports high-brightness transparent window display applications.
