Texas Instruments TLC6984EVM LED Display Driver Evaluation Module
Texas Instruments TLC6984EVM LED Display Driver Evaluation Module (EVM) is used as a reference for engineering demonstration and evaluation of the TLC6984. The TLC6984 is a highly integrated, common cathode matrix LED display driver with 48 constant current sources and 16 scanning FETs. The Texas Instruments TLC6984EVM can be used as a basic function evaluation module for Narrow Pixel Pitch (NPP) LED displays or mini and micro-LED products.
Features
- 48 current source channels from 0.2mA to 20mA
- 16 scan line Switches with 190mΩ RDS(ON)
- Ultra-low power consumption
- High speed and low EMI continuous clock series interface (CCSI)
Additional Resources

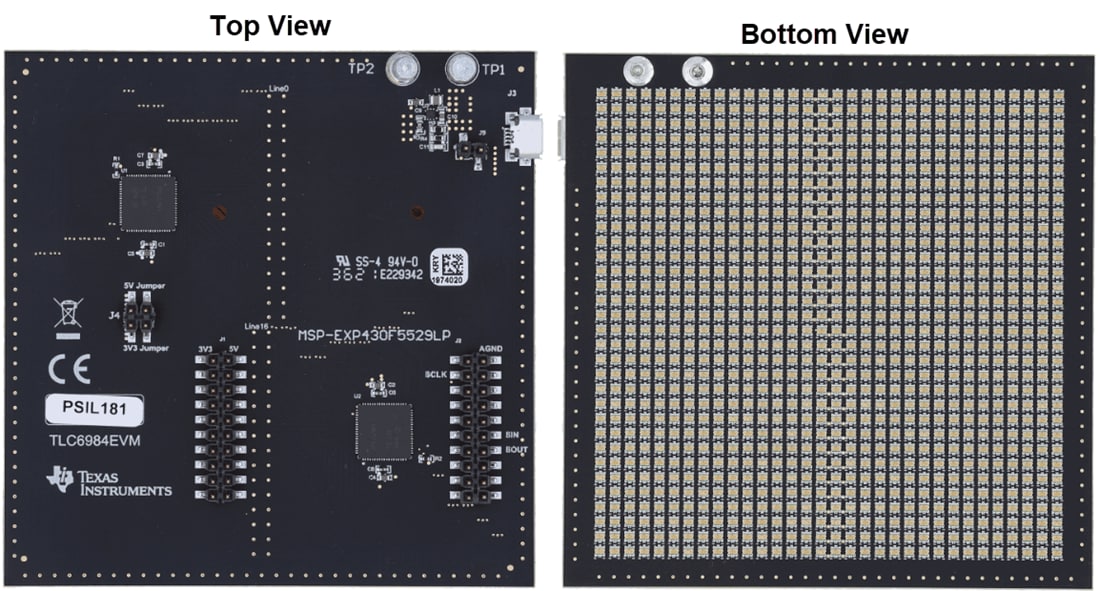

Board Layout
Related Product
Texas Instruments TLC6984 48x16 Matrix LED Display Driver
common cathode matrix LED display driver with 48 constant current sources and 16 scanning FETs.
Related Development Tool
Texas Instruments MSP430 USB LaunchPad Evaluation Kit
Easy-to-use Evaluation Module based on the MSP430F5529 microcontroller.
